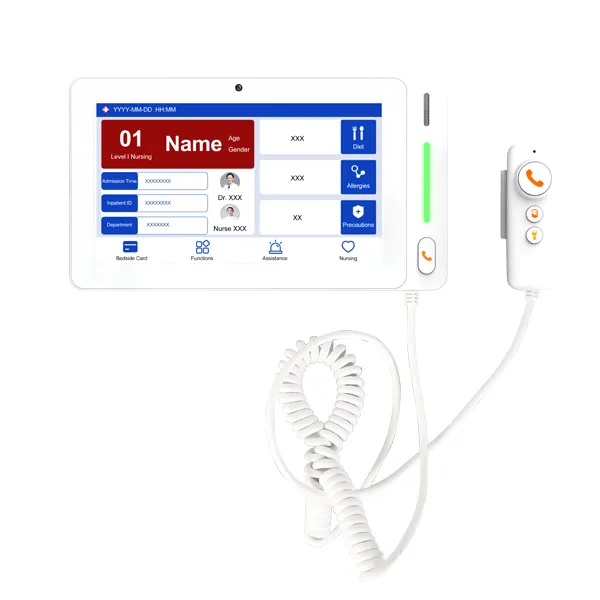

MC7141 7-Inch Bedside Terminal - 翻译中...

Características

● Patient–Nurse Communication: Supports one-touch calling and two-way voice intercom with the nurse station for timely assistance and communication.
● 7" HD Touchscreen Interface: Equipped with a 7-inch capacitive touchscreen (1024 × 600 resolution) for clear display and smooth operation.
● Comprehensive Patient Information Display: Displays real-time bed information, patient details, system status, and nursing information for convenient monitoring.
● Hospital Information Access: Provides access to hospital information, department introductions, admission instructions, health education videos, and announcements.
● Medical Information Inquiry: Supports queries for medical orders, examination results, test reports, and hospitalization expenses through integration with hospital data systems.
● Android-based System: Powered by Android 10, ensuring stable operation, flexible configuration, and easy system expansion.
● Network Communication: Supports IP-based communication via Ethernet or PoE, ensuring reliable data transmission across the nurse call system.
● Multiple Interface Support: Equipped with multiple interfaces such as RJ45, RS-485, alarm inputs, and control interfaces to support external devices like emergency buttons and corridor lights.
● Ergonomic Handset Design: Features a magnetic handset with physical buttons for call control and convenient bedside operation.
● Reliable Industrial Design: Designed for continuous operation in hospital environments with low power consumption and wide operating temperature range.

Contacto ahora Dejar mensaje Descargar

Introducción
Especificación

翻译中...

Model	MC7142 Bedside Terminal - Wall-Mounted
Screen Size	7 inches
Resolution	7": 1024 × 600 px
Main Chip	Quad-core Cortex™-A53, 1.8 GHz
Memory	1GB
Storage	8GB
Video Codec	H.264
Audio Codec	G.711 / G.722 / G.729
Network	10/100 Mbps adaptive
Communication Protocols	TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
Interfaces	7" Wall-Mounted Bedside Terminal: Alarm Input ×4, RJ45 ×1, RS-485 ×1, Power ×1, Reset Button ×1, Serial Port ×1
Touch Control	Multi-point capacitive touchscreen
Operating System	Android10
Working Voltage	DC 18–24V or standard PoE
Standby Power Consumption	7": < 3 W
Working Power Consumption	7": < 5 W
Operating Temperature	-40℃～+65℃
Installation Method	Wall-mounted / Flush-mounted
Package Dimensions	250 × 165 × 40mm
Product Dimensions	187.5 × 121 × 21mm
Net Weight	0.5 kg
Gross Weight	0.6 kg
