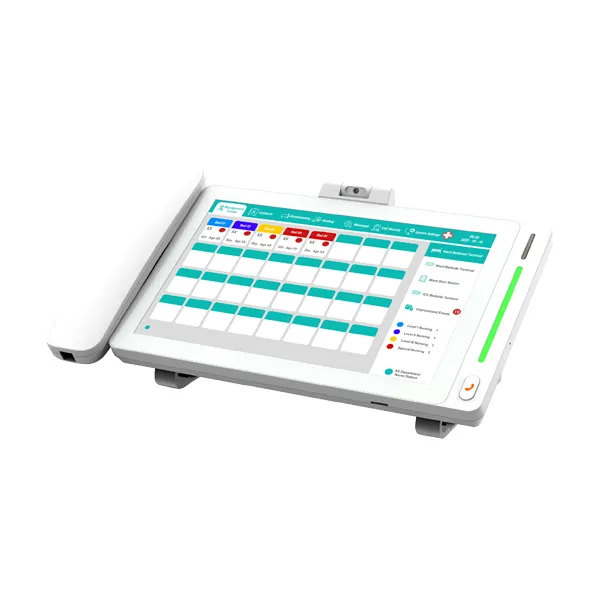

Model | MC7111A |
Screen Size | 10 inches |
Screen Brightness | 300 cd/m² |
Camera (Optional) | 8 MP; adjustable angle approx. 35°; sliding cover design for privacy protection |
Resolution | 10": 1280 × 800 px |
Main Chip | Quad-core Cortex™-A53, 1.8 GHz |
Memory | 1 GB (standard) |
Storage | 8 GB (standard) |
Video Formats | MP4, AVI, MKV, MOV |
Audio Formats | MP3, AAC, WAV |
Image Formats | JPEG, PNG |
Network | 10/100 Mbps adaptive |
Communication Protocols | TCP, UDP, RTP, ARP, IGMP, HTTP, SIP / Cellular |
Interfaces | Power interface ×1, RJ45 ×1, Flashing switch ×1, Type-C ×1 (convertible to USB with adapter), Serial port ×1, RS-485 interface ×1, Control interface ×1, Audio output ×1, Audio input ×1 |
Other Features | RGB three-color indicator light (configurable to multiple colors); Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: version 4.0 or above; WiFi: supports 2.4 GHz band; External hardware watchdog to prevent system crashes |
Handset | Magnetic handset design |
Physical Buttons | Emergency support button, Hands-free button, Hidden screen on/off button, Hidden restart button |
Touch Control | Multi-point capacitive touchscreen, supporting 10-point touch and operation with gloves |
Operating System | Android10 |
Power Supply | DC 18–24V or standard PoE |
Standby Power Consumption | 10": < 7 W |
Working Power Consumption | 10": < 5 W |
Operating Temperature | -40℃～+65℃ |
Installation Method | Desktop placement |
