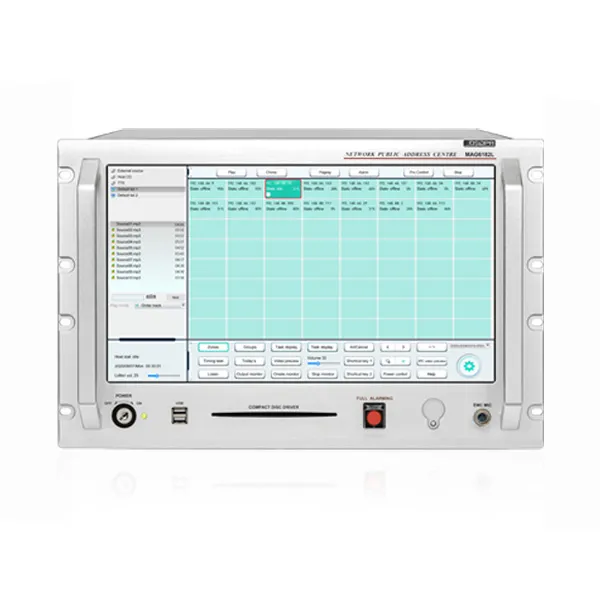

MAG6182L Network Public Address Center - 翻译中...

Características

● IP based network system
● With two servers and two databases, one master host and one backup unit, real-time synchronization, for dual-system hot backup function.
● 17.3" large color screen, with touch screen control.
● Using a key switch for a safer and more stable system.
● With powerful broadcast matrix, and built-in large-capacity program source capacity, can customize program sources as needed.
● With one-key alarm trigger for all zones and manual alarm functions.
● With TTS Chinese and English text broadcast function;
● With zone monitoring function to monitor the playback status and volume of zone terminals in real time.
● With zone paging function to directly page the zone on the host.
● Can add and display the new zone automatically, no need to set and restart the host.
● With auto on/off function, easy to use; with automatic screen saver function, energy-saving.
● With recording function. Can make your own program sources, which can be recorded by this machine, or copied from the remote control computer.
● With timing control function. Can edit the timing point on this machine, or download the timing point from the computer to the machine for execution.
● Equipped with a built-in CD player, with self-made CD player control interface.
● Can use the network paging terminal to expand the audio input channel.
● Adopt modular design, and can install network expansion modules, with more flexible function customization and easier maintenance.
● Adopt double solid-state hard disk design, with faster startup speed, better earthquake resistance and system stability.
● Adopt high-end industrial server motherboard design, dual network redundant backup.
● Can customize the bulk processing function of the and customize the priority of the program audio source.
● Support Pinyin, five-stroke, stroke input method and so on.
● Support video terminals management, can video intercom, video monitoring, multi-screen display function, and display multi-screen images through the extended display screen.
● Support the binding of broadcast terminal with IPC.
● Support H264 video format.
● With offline functions of network microphone and network terminal.
● Support the access of intercom system.
● Support electronic map interactive management, and can customize the electronic map of the zone, with the electronic map status and operation functions.
● Support network radio playback and wireless push.
● Can remote control our company’s PC10 peripheral equipment.
● Mixing output is possible by connecting to a broadcast terminal with mixing function.
● Supports linkage with mainstream cameras such as Hikvision and Dahua to achieve AI broadcast functions such as event triggering and event broadcasting.

Contacto ahora Dejar mensaje Descargar

Introducción
Especificación

翻译中...

Model	MAG6182L
Computer System	Ubuntu 22.04
CPU	Intel(R) Core(TM)I7-7500U
Memory	8G DDR4
Hard Disk Capacity	250G M.2 SSD +512G 2.5-inch SSD
Audio Playback Format	MP3
Play Stream	120k-320K
Operating System	32/64 bits
Number of Terminals Supported by Network	Less than 110 unicast, unlimited multicast
Screen Size	17.3" LCD screen
Control Method	Touch screen
Timing Power Load Capacity	Single channel current: 2A
System Audio Signal SNR	LINE: >70dB; MIC: >60dB
System Audio Signal Distortion	1kHz<0.5%
System Audio Signal Standard Input Level	LINE: 300mV±20mV; MIC: 10mV±2mV.
System Audio Signal Standard Output Level	0dBV
Power Output Method	Constant resistance output
Undistorted Output Power	10W
Power Consumption	AC 220V/50Hz/150W
Package Dimensions (L×W×H mm)	535×360×540
Machine Dimensions (L×W×H mm)	483×308×445
Gross Weight	28.7kg
Net Weight	19.5kg
System Software	Network PA system software package. All rights reserved, no copying or counterfeiting is allowed.
