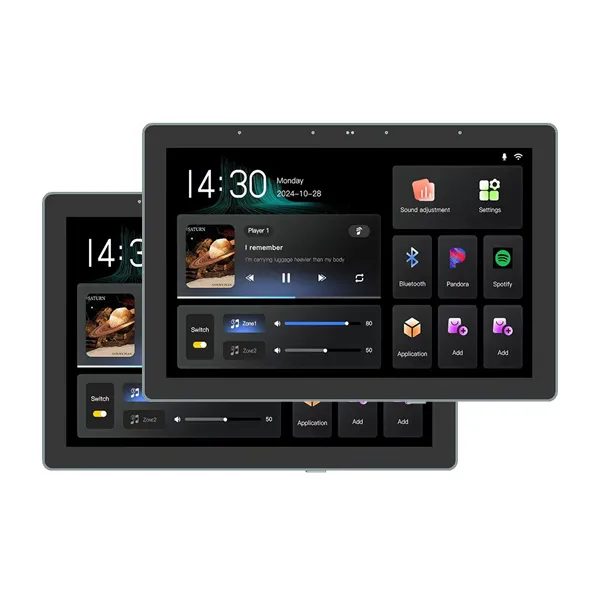

DM858T 8×10W 8-Inch In-Wall Smart Background Music Amplifier - 翻译中...

Características

● Supports dual-zone music control, featuring an 8-inch touch screen with 1280*800 resolution for intuitive operation and control.
● Audio Playback: Compatible with a wide range of audio formats including MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG, etc.
● Bluetooth: Enables mobile phones to search for and connect to the host for wireless music playback.
● External Audio Input: Allows connection of external audio sources to the unit for amplified output.
● Supports connection of wireless microphones for home karaoke entertainment (Optional).
● Time and Calendar: Includes clock and calendar display functions.
● TF Card Support: External TF card slot, compatible with TF cards up to 32GB.
● USB Support: External USB port, supports USB drives with capacity up to 32GB.
● Supports both wired network connection and Wi-Fi connection.
● Equipped with an RS485 interface.
● Suitable for home, commercial areas, children's rooms, and similar environments.

  • Introducción
  • Especificación

翻译中...

Model

DM858U

DM858T

CPU

Quad-core Cortex @1.6GHz

System

Android 11

Screen

8-inch 1280*800 multi-touch screen

RAM

2G

ROM

16G

Wired Network

Support

Wi-Fi

802.11b/g/n, 150Mbps 2.4GHz

Zigbee

\

802.15.4PHY/MAC Zigbee zigbee protocol stack

RS485

Support

Wireless Protocol

WiFi, Bluetooth

WiFi, Bluetooth, Zigbee

Gateway Function

\

Features Zigbee gateway capability, supporting connection to 50+ sub-devices and enabling seamless control of various Tuya ecosystem devices.

Music Playback

Supports music playback via Bluetooth, TF Card, USB drive, and AUX input.

Speaker Output

8×(10-25W) (MAX.) (Specific output depends on selected hardware configuration)

Output Impedance

4-8Ω

Amplifier Parameters

Frequency Response

20Hz-20kHz

S/N Ratio

98dB

Power Input

AC110~250V, 50/60Hz

Installation Method

Surface-mounted with pre-installed box

Operating Temperature

0℃~40℃

Operating Humidity

5%~90% RH, non-condensing

Junction Box Dimensions

177×104×69mm

Product Dimensions

198.2×133×55.7mm

Package Dimensions

300×175×105mm

Net Weight

0.8kg

Gross Weight

1.2kg
