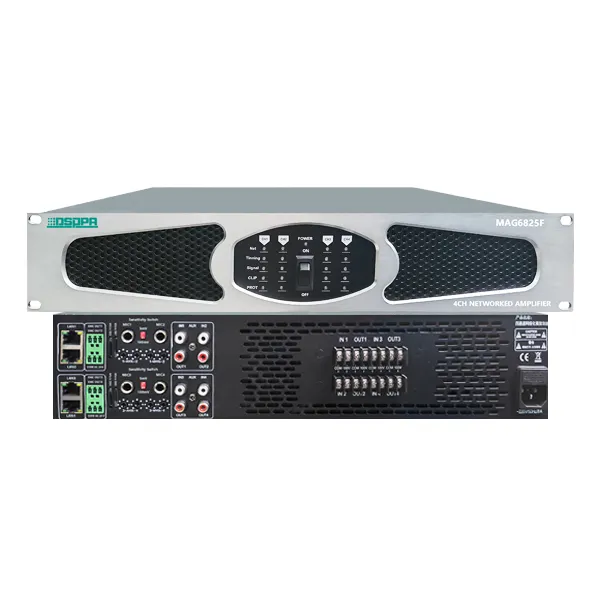

MAG6825F 4×250W Four-Channel Network Digital Amplifier - 翻译中...

Características

● With time frame synchronization mechanism, the local clock and the network host clock are synchronized in real time;
● The front panel integrates four groups of status indicators, each group consisting of five LEDs: Net, Timing, Signal, CLIP, and PROT.
● Supports network audio playback, capable of playing program sources distributed by the network host or audio streams from network audio collectors.
● It can play background music, emergency paging and alarm signals from the system host, which can be divided into three categories: background broadcasting, business broadcasting and emergency broadcasting;
● Built-in watchdog function, effectively ensuring the normal operation of equipment;
● Adopts a high-fidelity CD-quality decoding chip, supporting decoding of MP3/WMA/WAV/PCM audio stream data with a maximum sampling rate of 48kHz and 16-bit resolution.
● The self-developed real-time operating system has strong real-time performance, and the broadcast sounds of multiple network players are synchronized in real time, and there is basically no time difference between them.
● Adopt self-developed network data error correction algorithm to ensure the real-time transmission of data and the accuracy of received data, ensuring stable and reliable operation.
● Built-in offline local scheduled playback function, scheduled program backup is stored in the SD card, and scheduled program is fully automatically backed up;
● Provides four AUX line inputs/outputs and four MIC inputs/outputs for convenient local audio source expansion and power extension.
● MIC input sensitivity switchable between 5mV and 100mV, compatible with passive, wireless, or active microphones.
● Supports 100V constant-voltage output (two terminals of the 8-pin 7.62mm barrier terminal block.)
● Supports 100V constant-voltage backup (two terminals of the 8-pin 7.62mm barrier terminal block.)
● Equipped with four RJ45 network ports (no hand-in-hand connection supported).
● Through the WEB page, network configuration, password login, and system settings can be performed, including: language setting (Chinese and English optional), login setting, offline scheduled playback function setting, amplifier standby mode setting, 100V constant-voltage backup function setting, and audio source priority setting (AUX, MIC, and Network are the three types of audio sources. When the priority levels are set the same, the output will be mixed, without mix level adjustment. By default, the lower-priority audio source is muted.)

Contacto ahora Dejar mensaje Descargar

Introducción
Especificación

翻译中...

Model		MAG6812F	MAG6825F	MAG6835F
Rated Output Power		4*120W	4*250W	4*350W
AUX IN	Input Sensitivity	330mV±50mV
	Frequency Response	80Hz~15KHz (±3dB)
	Distortion	≤1%
	SNR	≥ 80dB(A-weighted)
AUX OUT	Rated Output	1000mV±100mV
MIC Input	Input Sensitivity	5mV±1mV / 100mV±10mV
	Frequency Response	80Hz~10KHz (±3dB)
	Distortion	≤1%
	SNR	≥ 75dB(A-weighted)
SD/NET	Frequency Response	80Hz~15KHz (±3dB)
	Distortion	≤1%
	SNR	≥80dB
100V Constant Voltage Output	Frequency Response	80Hz~15KHz (±3dB)
	Distortion	≤1%
	SNR	≥ 75dB(A-weighted)
SD Card Capacity		32G
Power Supply		AC220V/50Hz-AC240V/50Hz or AC220V/60Hz-AC240V/60Hz
Overcurrent, Overheating and Overvoltage Protection		Support
Rated Power Consumption		620W	1190W	1720W
Gross Weight		10kg	10kg	10.5kg
Net Weight		8.8kg	8.8kg	9.45kg
Package Size (L×W×H mm)		600×535×155mm
Machine Size (L×W×H mm)		483×420×88mm
