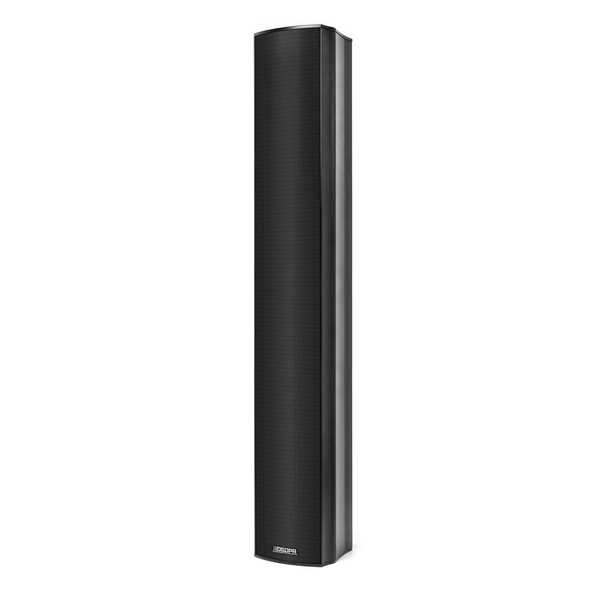

POE6120 120W Network Outdoor Column Speaker - 翻译中...

Características

● The speaker power ratings are 80W, 120W, and 180W respectively;
● Supports networked broadcasting functionality;
● Complies with the POE 802.3bt power supply standard and supports external DC 48V power input;
● Compatible with POE 802.3at power supply standard switches, with output power limited to one-third of the rated power;
● Equipped with a built-in DSP digital processor featuring gain adjustment, volume control, priority adjustment, and 10-band EQ tuning;
● All parameters can be configured via a web interface;
● Includes a standard bracket allowing tilt and horizontal angle adjustments;
● Custom digital network interfaces such as DANTE or AES67 can be configured;
● Features a streamlined design with a sleek and aesthetically pleasing appearance, suitable for various venue decorations;
● Utilizes a 4.5" glass fiber cone woofer and a 1" neodymium magnet tweeter combination, delivering a wide frequency response, clear bass layers, and bright, crisp highs;
● Includes a versatile mounting bracket for easy installation;
● Constructed with a sturdy aluminum alloy cabinet and aluminum grille, resistant to deformation and rust.

Contacto ahora Dejar mensaje Descargar

Introducción
Especificación

翻译中...

Model	POE6080	POE6120	POE6180
Rated Output Power （CEA2006-490Standard 1%@1khz）	80W	120W	180W
Rated Impedance	4Ω	8Ω	5.3Ω
Power Amplifier Frequency Response	20Hz-20kHz ±3dB (Normal working conditions, rated load)
SNR	≥80dB 100V Priority input 71≥（A Weighted）
Total Harmonic Distortion	≤0.3%(Normal working conditions，8Ω）
Input Equilibrium	10 PEQ(±18dB)
100V Priority Input Sensitivity	100Vrms±5V
Input Impedance	≥200kΩ
Power Supply	POE802.3bt (POE++) Standard Power Supply or DC48Vto DC54V
Recommended POE Switch.	TL-SG1005PB/TP-LINK
Speaker Unit	4.5"×2，1”×1	4.5"×4，1”×1	4.5"×6，1”×1
Electroacoustic Frequency Response	95Hz-18kHz	95Hz-18kHz	95Hz-18kHz
Maximum Sound Pressure Level	109±3dB	113±2dB	116±2dB
Working Temperature	-40℃ to 70℃
Network Transmission Distance	Use CAT6A network cables, with an optimal length within 80m.
Outer Packaging Dimensions (L×W×H mm)	732420255mm	972420255mm	1237420255mm
Product Dimensions (L×W×H mm)	610140155mm	850140155mm	1105140155mm
Gross Weight	15.8kg	22.3kg	28.2kg
Net Weight	6.9kg	10.15kg	13.10kg
